　 Active Closed Loop Solar Water Heating Systems 　
　 　　 Closed Loop Solar Heating Systems are suitable for single and multible solar heating application systems,e.g.domestic solar water heating,solar water heating hot tub,solar swimming pool heating or solar space heating systems.The Closed Loop Solar Systems are suitable for areas with questionable water quality and all climate conditions.The Closed Loop Solar Heating Systems are the preferred option for extremely cold areas. 　
　 　 　
　
　
　

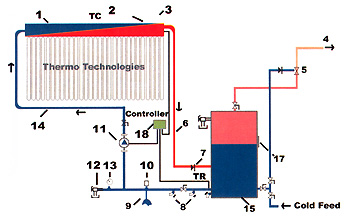

1.Collector 2.Collector Sensor 3.Manual Air Valve
4.Hot Water to Taps 5.Tempering Valve 6.Collcetor Return
7.Check Valve 8.Hose Bibs For Filling And Flushing 9.Expansion Tank
10.Air Scoop & Air Vent 11.Circulating Pump With Flanges Or Couplings 12.Pressure Relief Valve
13.Pressure Gauge 14.Collector Supply 15.Heat Exchange Coil
16.Solar Hot Water Tank 17.Immersion Heater 18.USDT 2001 Controller
　
　 　 　
　 Operation 　
　 ¢The controller(18) will switch on the pump when the temperature at the collector sensor TC is higher than the return temperature TR by at least the pre selected(delta T)amount.
¢The pump circulates a heat transfer liquid around the loop.
¢Heat from the collector is transferred to the domestic water through the heat exchange coil in the tank.
¢With the pump running,if delta T is not met,the pump will switch odd.
¢When a present tank temperature is reached at Tmax,the controller switches off the pump.
¢The check valve(non-return valve)prevents heat from the tank fising towards the collectors should the tank be warmer(e.g.at night).		 　
　 　 　
　
MODEL
Lighting
(m2)
Heat-pipe vacuum tube
Supply hot water
(L/≧)
Qty.per 20'/40'
Container
diameter
length
No.
SPA-1500/47-20-C
2.0
Φ47mm
1500mm
20
120/60
125/242
SPA-1500/47-22-C
2.2
Φ47mm
1500mm
22
130/60
118/220
SPA-1500/47-24-C
2.55
Φ47mm
1500mm
24
150/60
110/205
SPA-1500/47-30-C
3.1
Φ47mm
1500mm
30
180/60
85/160
